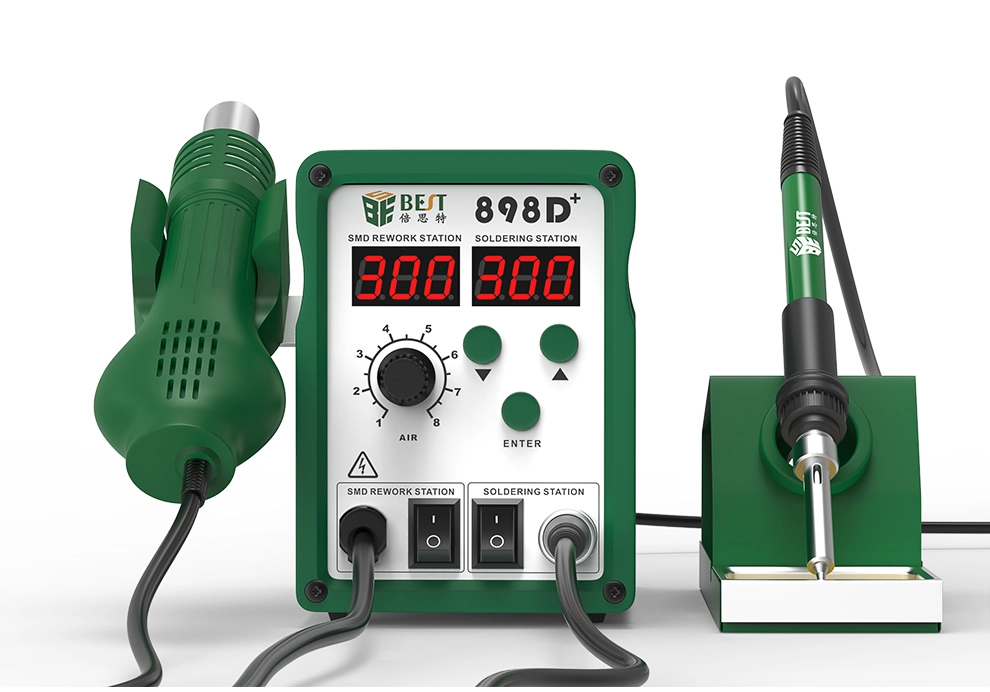

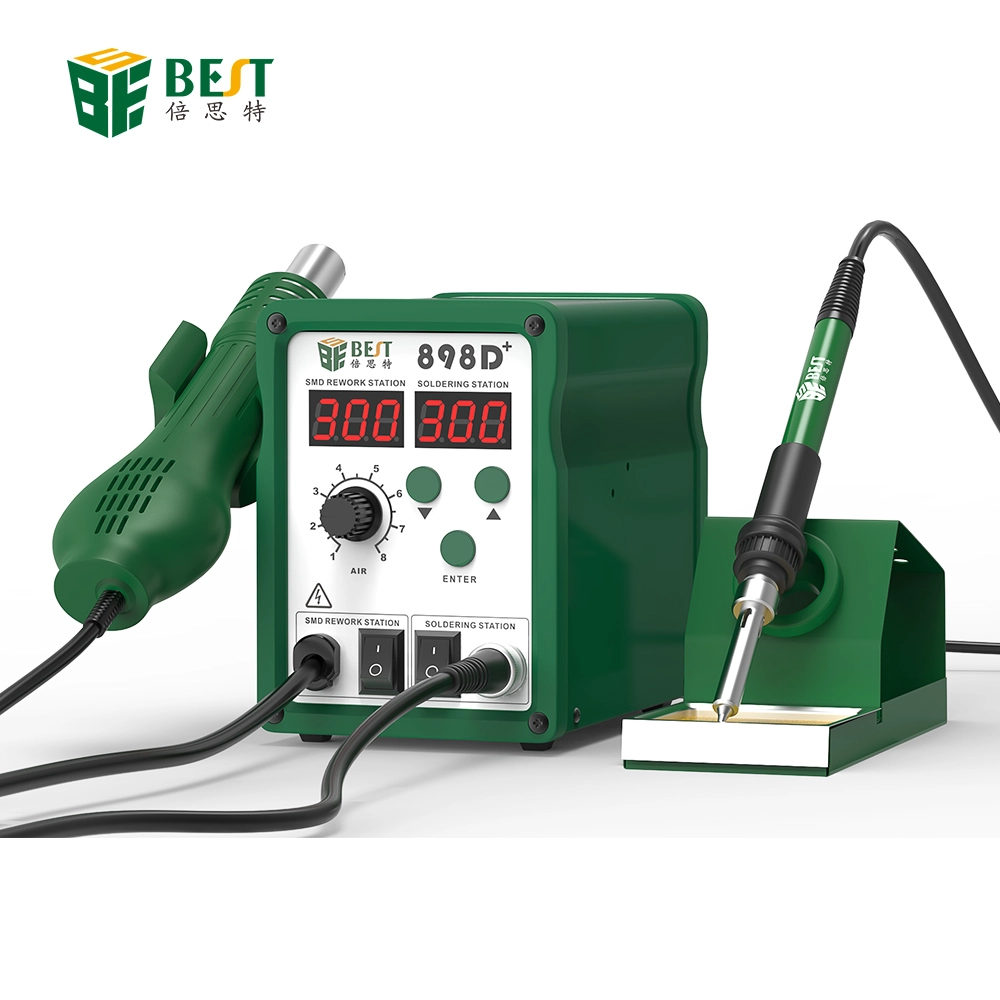

SMD rework station manufacturer 2 in 1 temperature adjusted LEDdisplay BEST-898D+

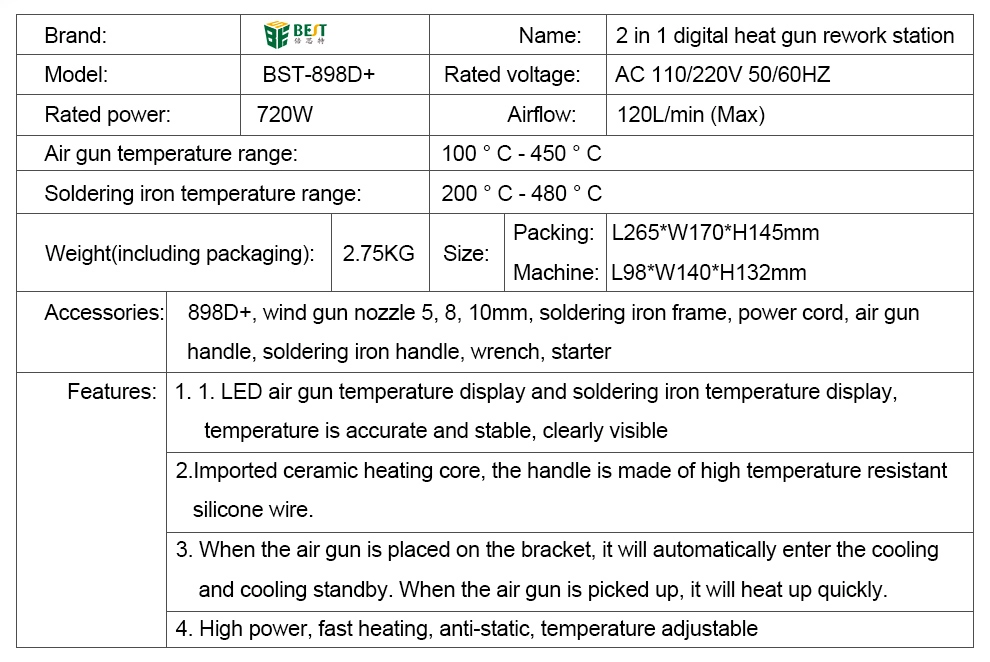

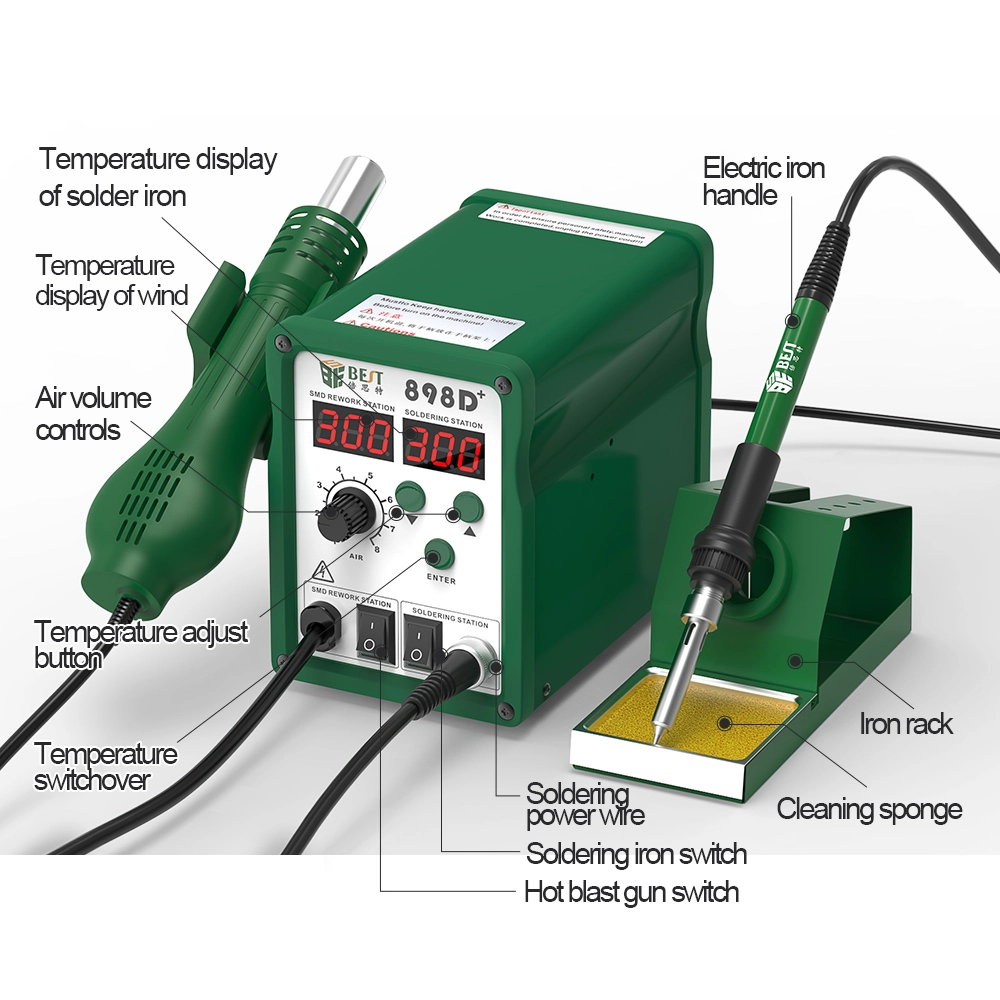

  • Model:BEST-898D+
  • Operating Voltage:AV 110V/220V 50Hz/60Hz
  • Output Power:700w
  • Temperature Range:100°C~450°C
  • Gas type:Air type Brushless blower
  • Gas flow:120L/min(Max)
  • Nozzle specifications:Diameters of 5mm 8mm 10mm
  • Heating wire:High-power heating wire

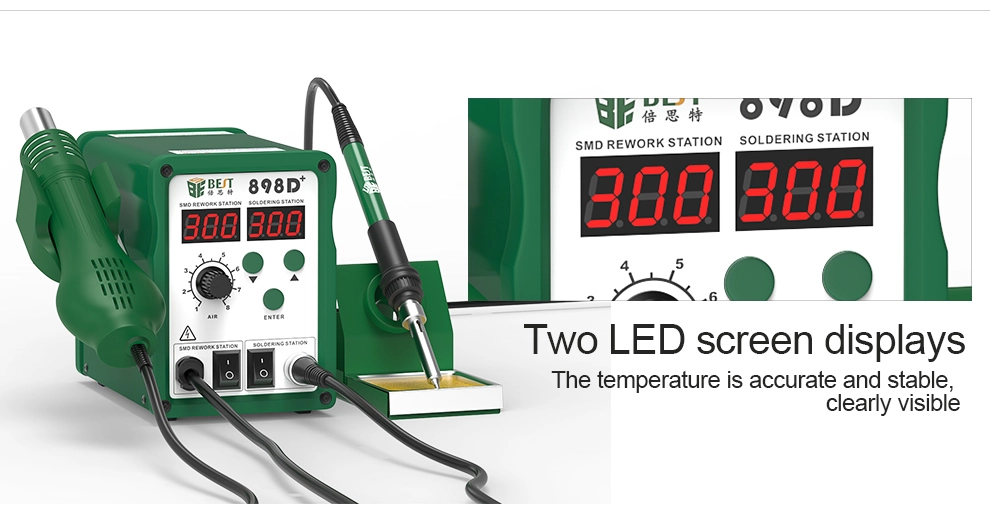

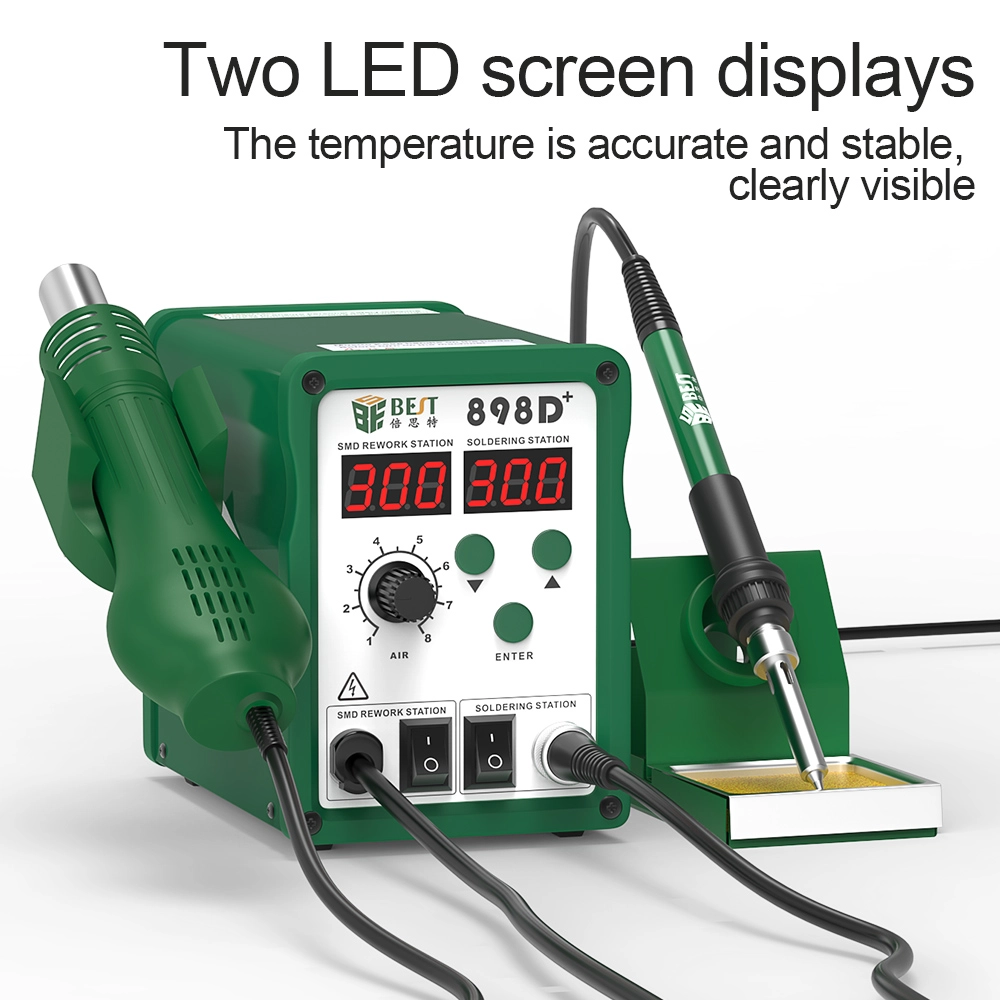

1.The rework station adopts sensor close loop,microcomputer control the temperature,LED display.

2. high-power,rapid heating,accurate and stable temperature.



3. The airflow is adjustable,the wind is heavy but soft .



4. The system starts working quickly only by holding the handle . Put the handle on the frame,the system will turn into the energy saving standby state.Convenient for real-time operation.

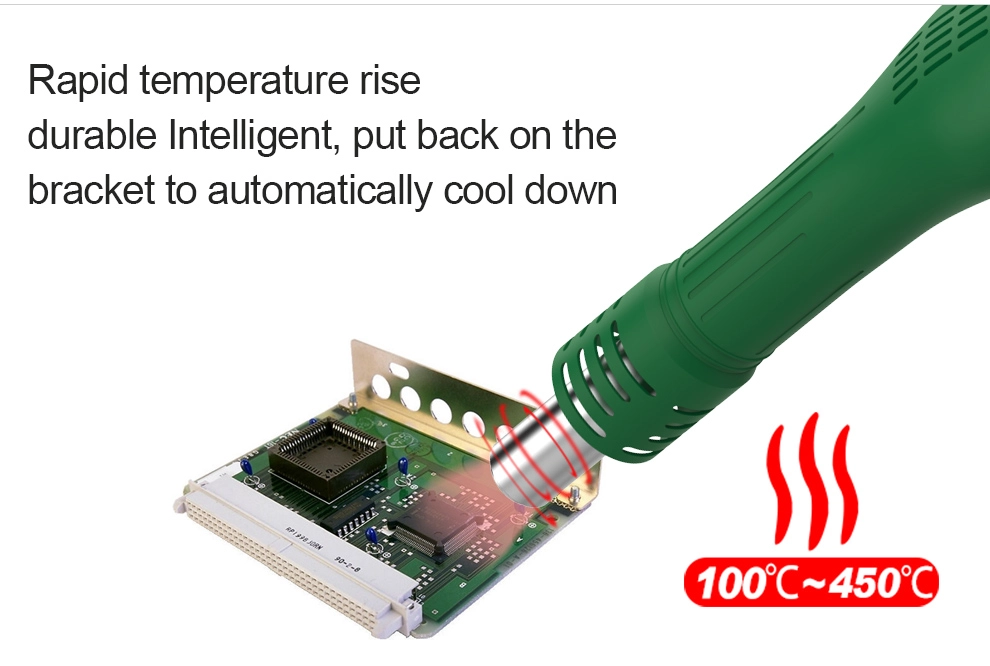

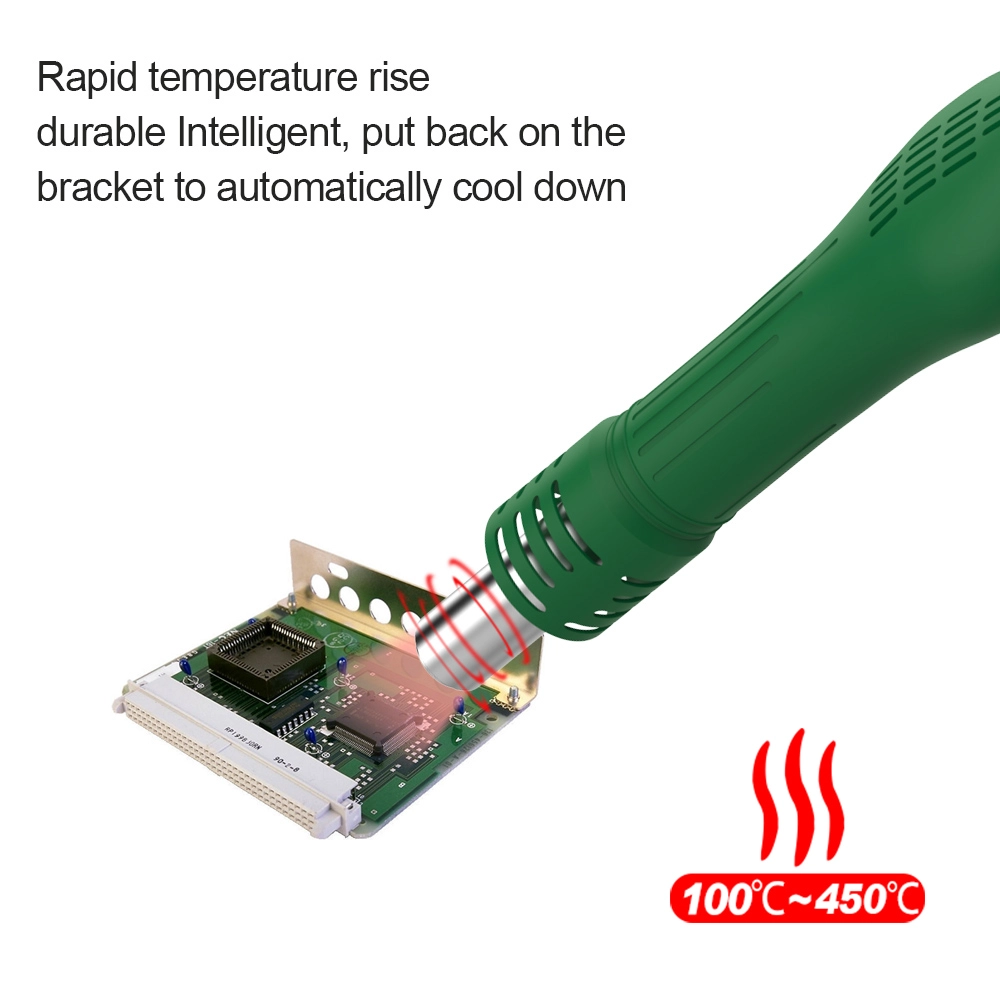

5.Intelligent cooling system. When temperature is down to 100°C,it turn into energy saving state which can prolong the service life of the heating element and protect the hot air gun.



6. Adopt small crust design,it's durable and handsome, occupy little place.Brushless blower with long working life and low noise.



7. The solder iron heat rapidly, and can be back to temperature quickly,which is good for lead-free soldering.

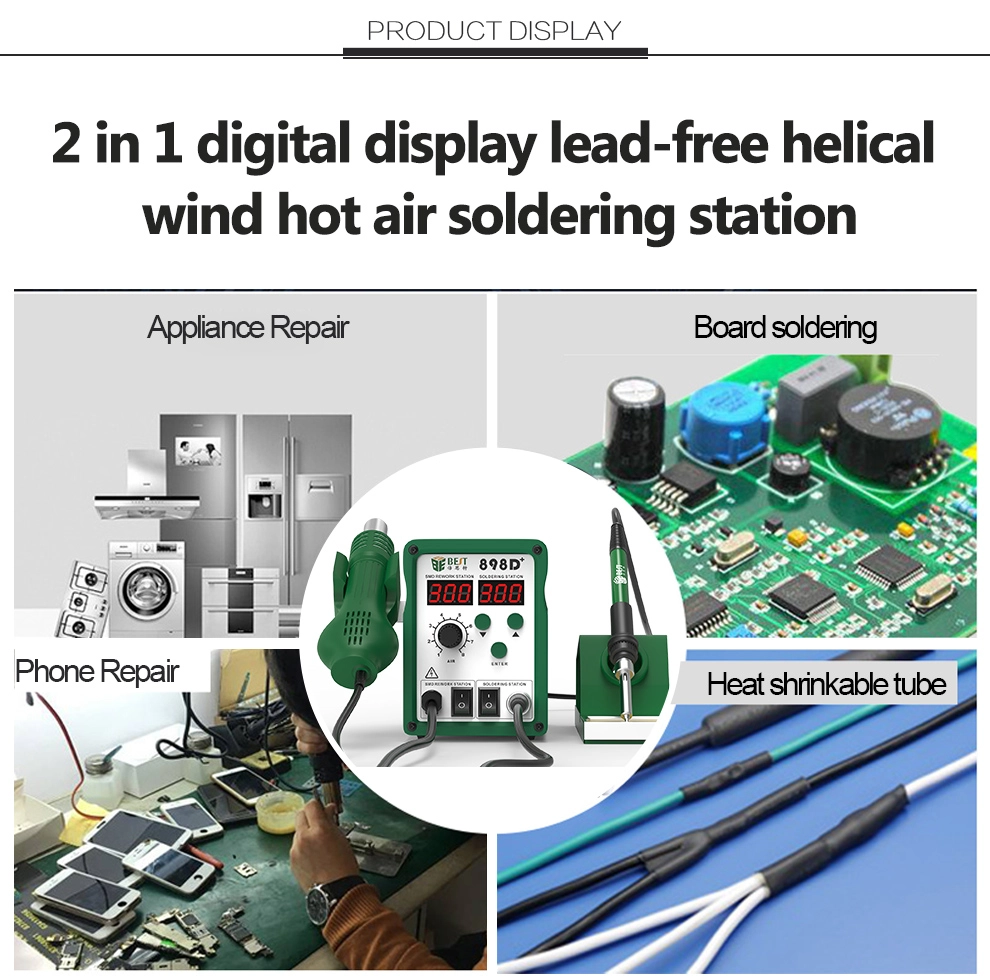

 Application:



      The rework station are commonly used for PCB,IC SMT,SMD  rework. Soldering for electronic




Hot air gun parts

Operating Voltage

AC 220V±10%  50Hz

Output Power

720W±10

Temperature Range

100℃~450℃

Gas type

Imported brushless air/soft wind

Gas flow

120L/min(Max)

Temperature stability

±2℃ Static state

Setting mode

Buttons to adjust

Display

LED Digital

Temperature lock mode

Touchtone

Noise

Less than 45dB

Nozzle specifications

5mm,8mm,10mm

Heating wire

High-power heating wire



Solder Equipment

Operating Voltage

AC 26V±10%  50Hz

Output Power

40W±10%

Temperature Range

200℃~480℃

Temperature stability

±2℃ Static state

Setting mode

Buttons to adjust

Display

LED Digital

Temperature lock mode

Touchtone

Tip-to-ground impedance

Tip-to-ground voltage

<2mV

Tip

BST900-M-T-I

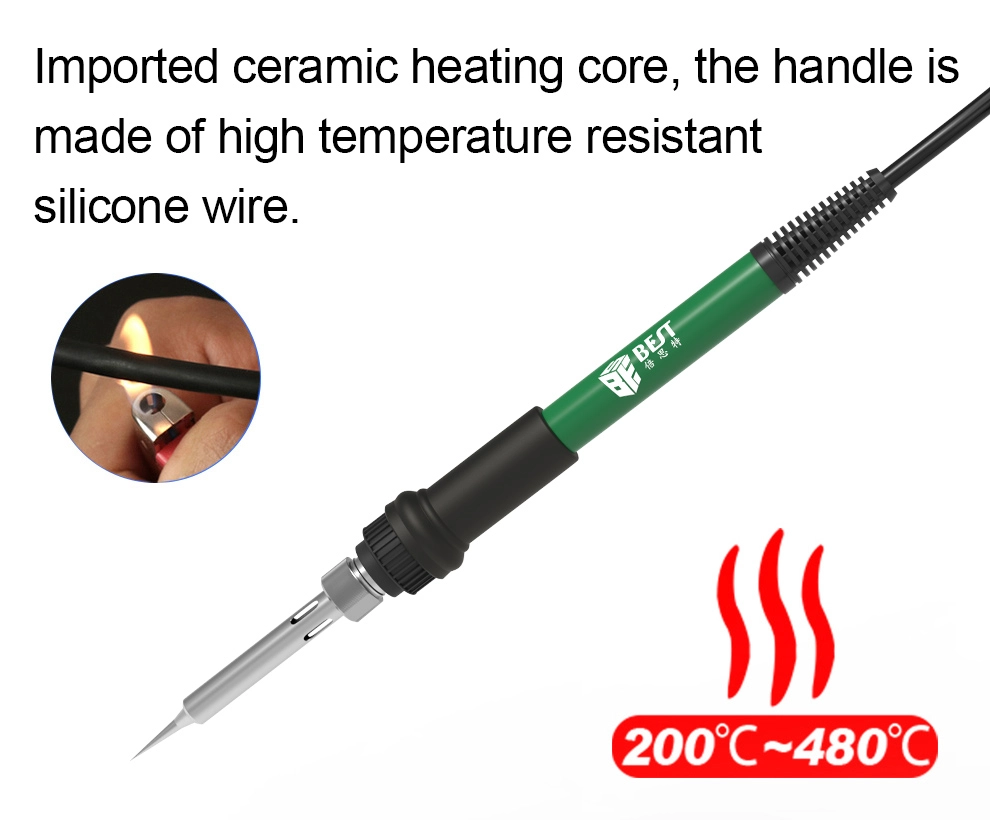

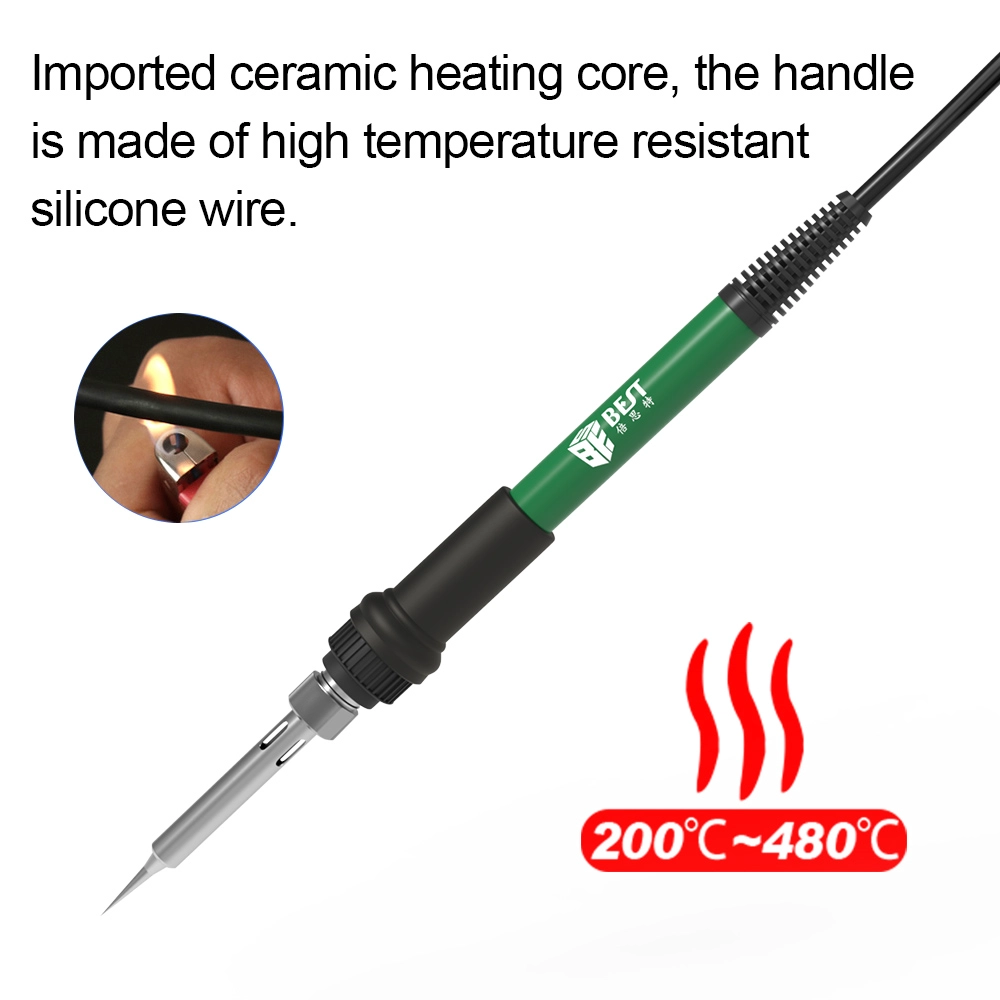

Heater

Four core ceramic heater
