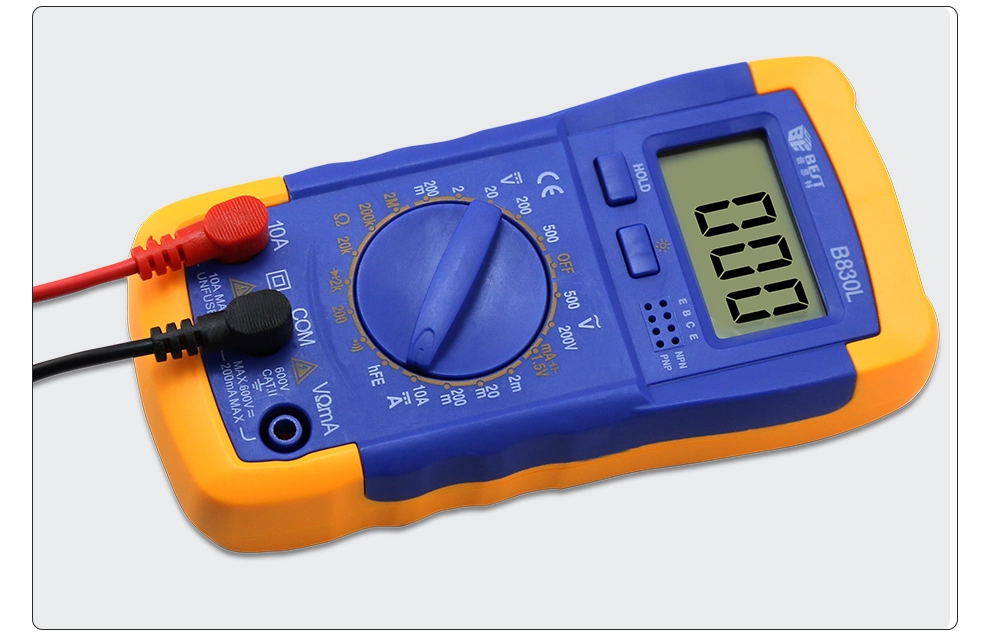

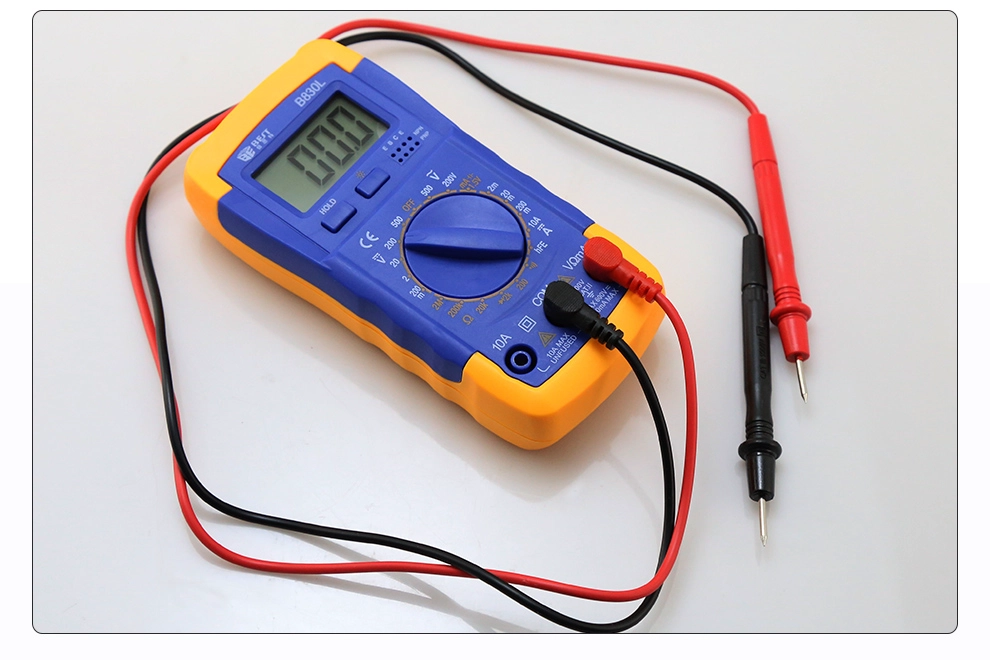

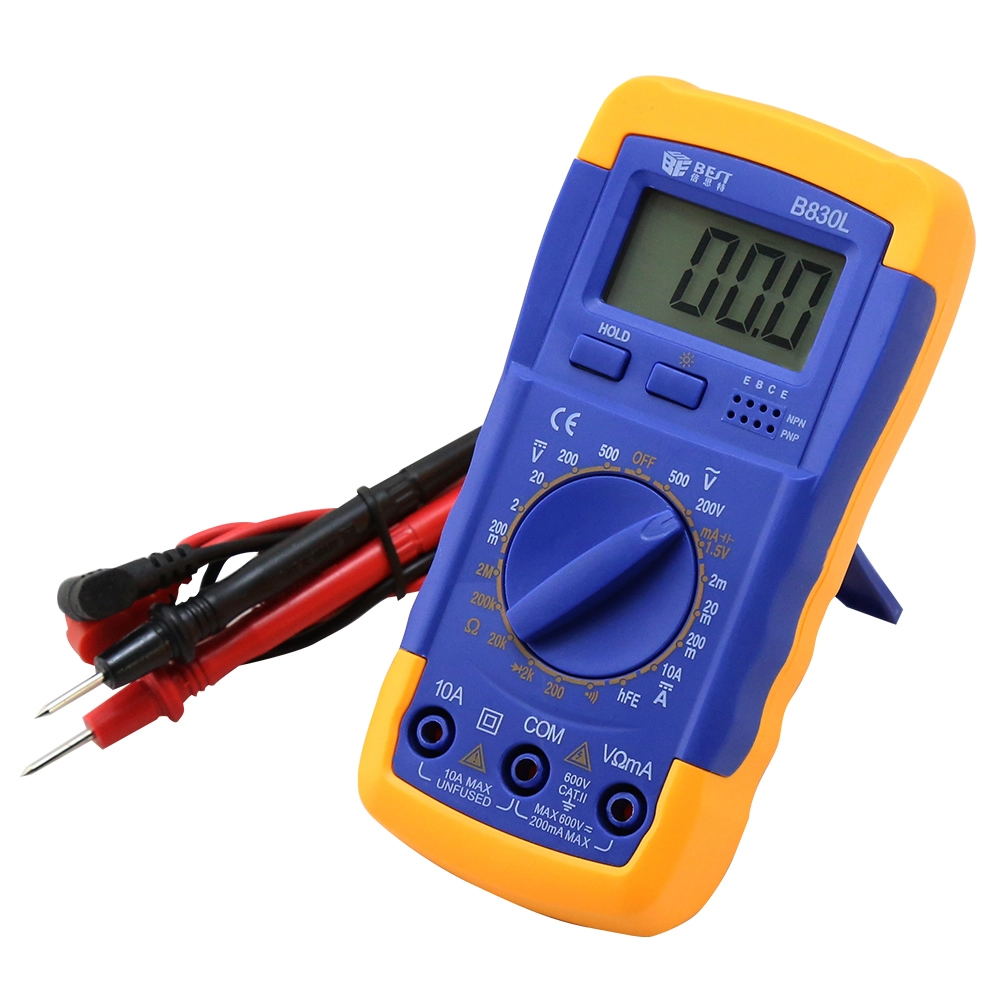

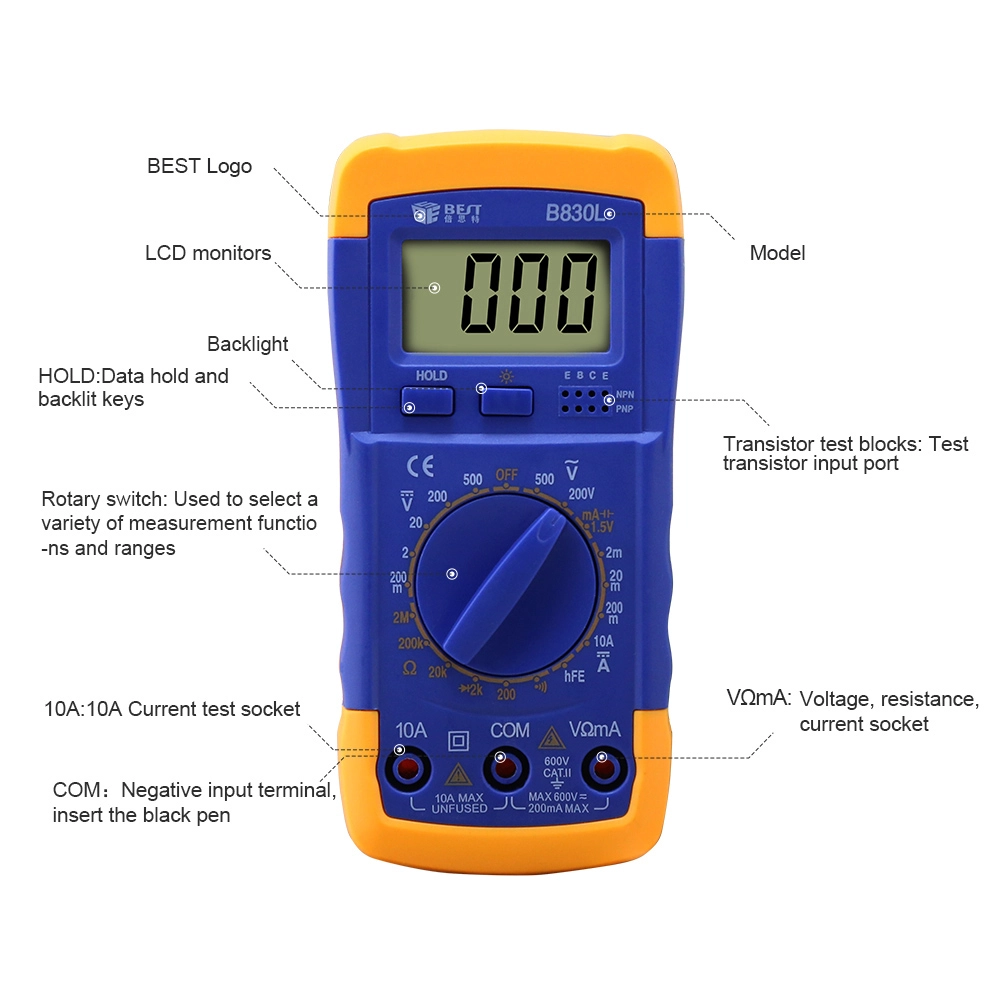

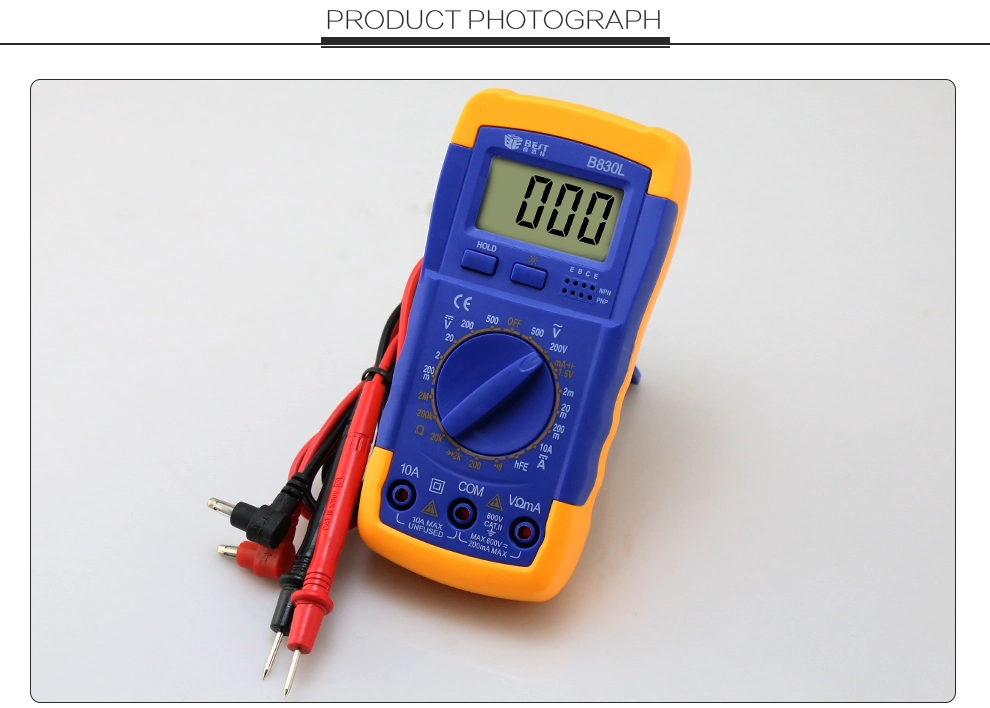

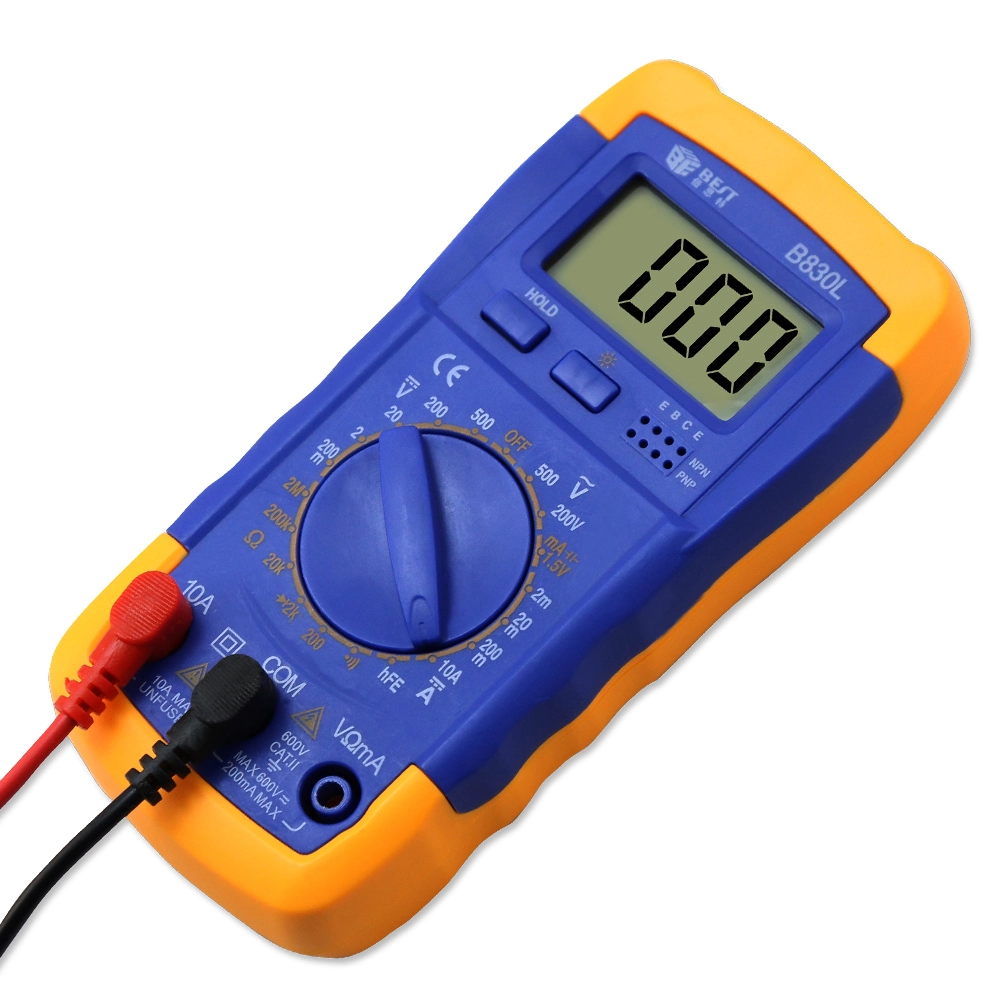

China Digital Multimeter Supplier Manual Range Multi-function BEST-B 830L

  • 1.Digital Multimeter DT-830D
  • 2.Max display: 1999
  • 3. Data hold:Yes
  • 4.Low voltage display: Yes
  • 5.Power supply: 9V (6F22)
  • 6.Measuring DC & Ac voltage,DC current,resistance and diode.

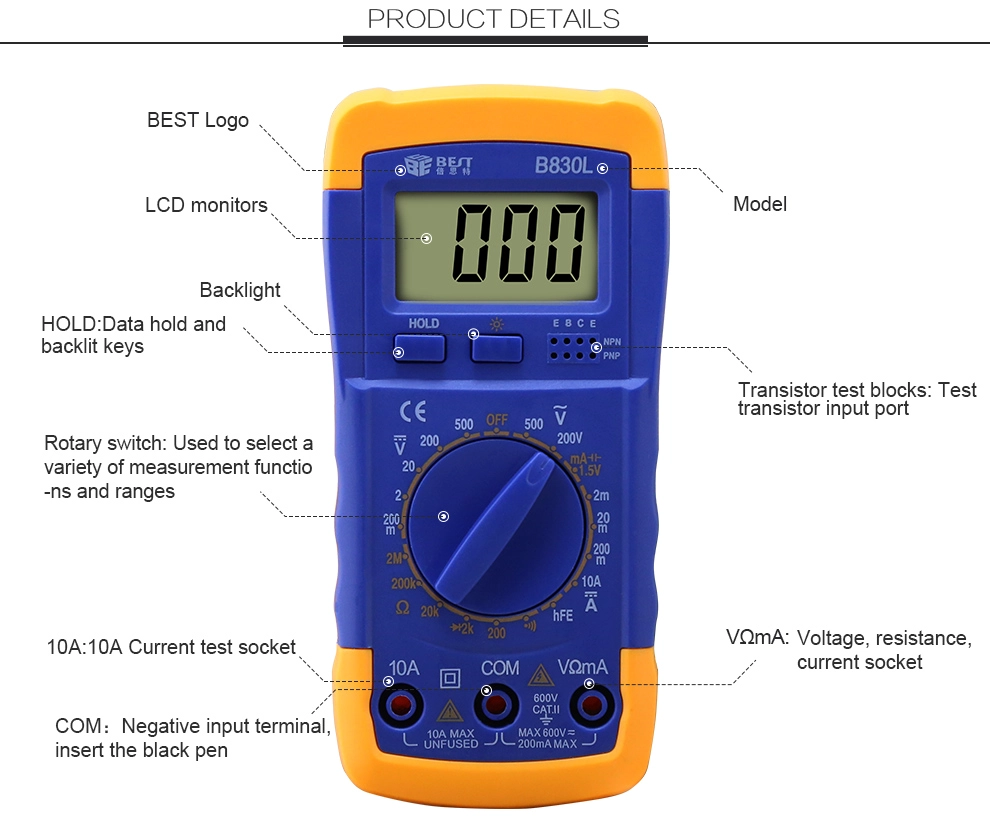

1. Vibration cover, streamline design, comfortable feel;

2. Large screen display,clear fonts;

3. Metal shield plate,magnetic,strong anti-interference performance;

4. Full protection, anti-high voltage circuit design

5. Self-recovery fuse protection circuit design

Application

           For engineering design, laboratory, pilot production, factory services, maintenance and other field  operations, and industrial use.



Basic functions

Range

Basic accuracy

Voltage DC

200mV/2V/20V/200V/500V

±(0.5%+3)

Voltage AC

200V/500V

±(0.8%+5)

Direct current

2mA/20mA/200mA/10A

±(0.8%+10)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ

±(0.8%+3)

Special function

Best-B830l

Diodes, transistors test

Off alarm shine

Low voltage display

Feature protects

200mA fuse file

File 10A fuse

Shock protection

Input impedance

10MΩ

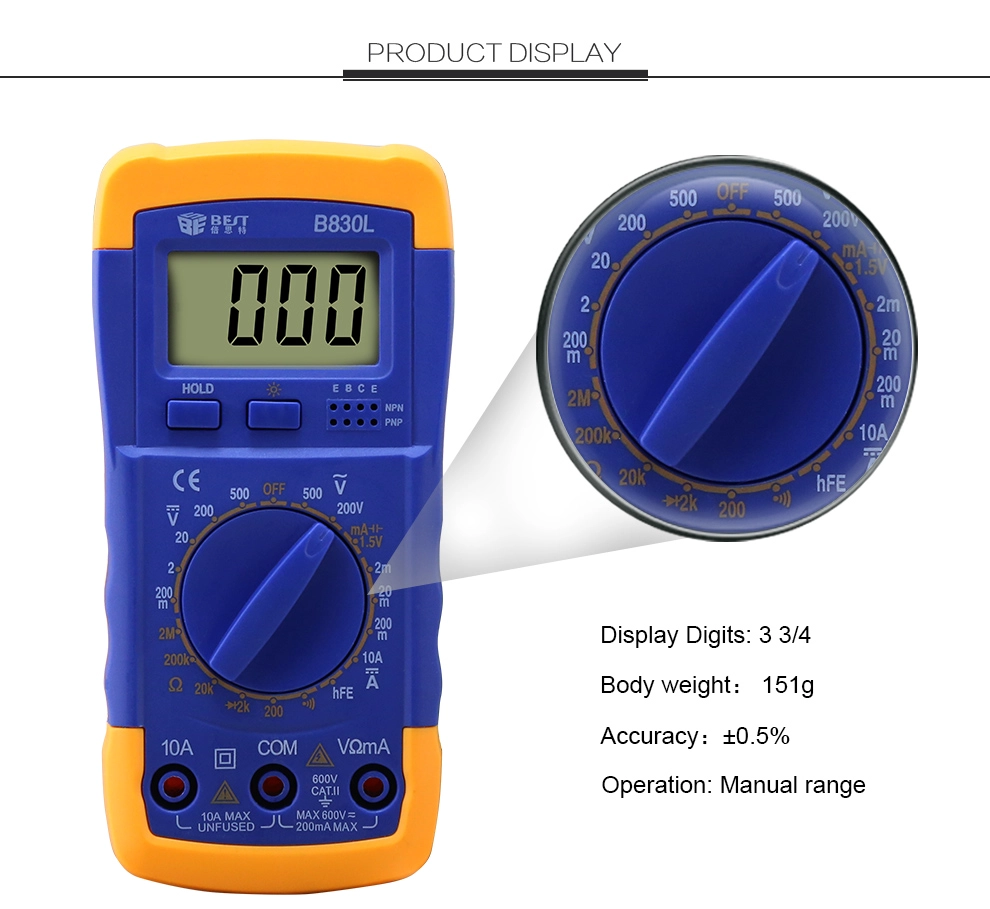

Operation

Manual range

Maximum Display

1999

Show product size

40×32mm

Power supply

9V (6F22)



General Characteristics



Body colors

Body:Black  Holster:Yellow

Body weight

151g (with battery)

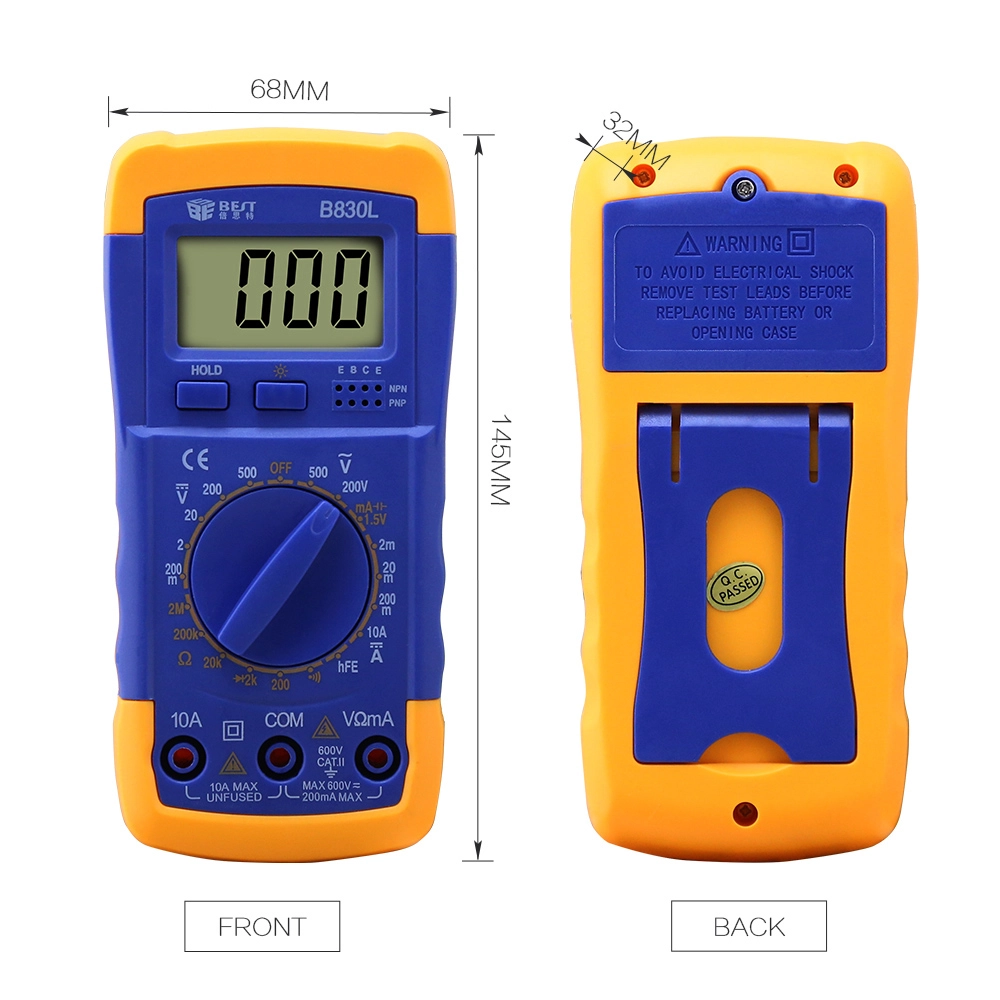

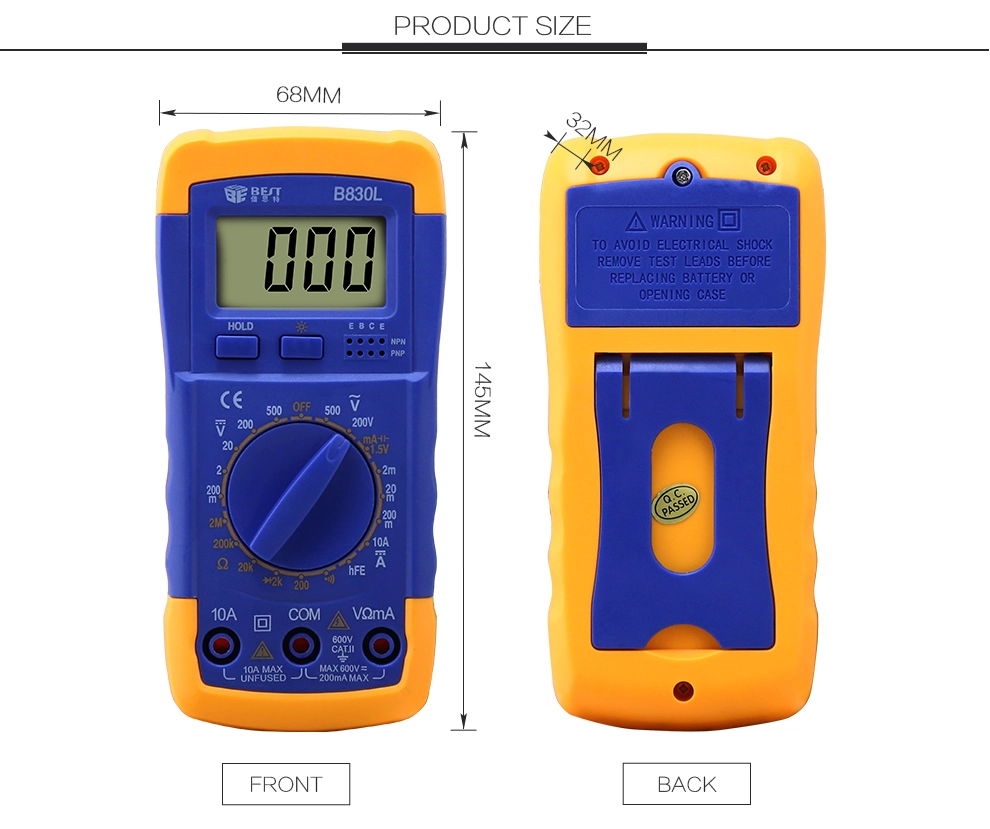

Dimensions

145×61×34mm

Standard Accessories

Touch Probe, batteries, manual, certificate

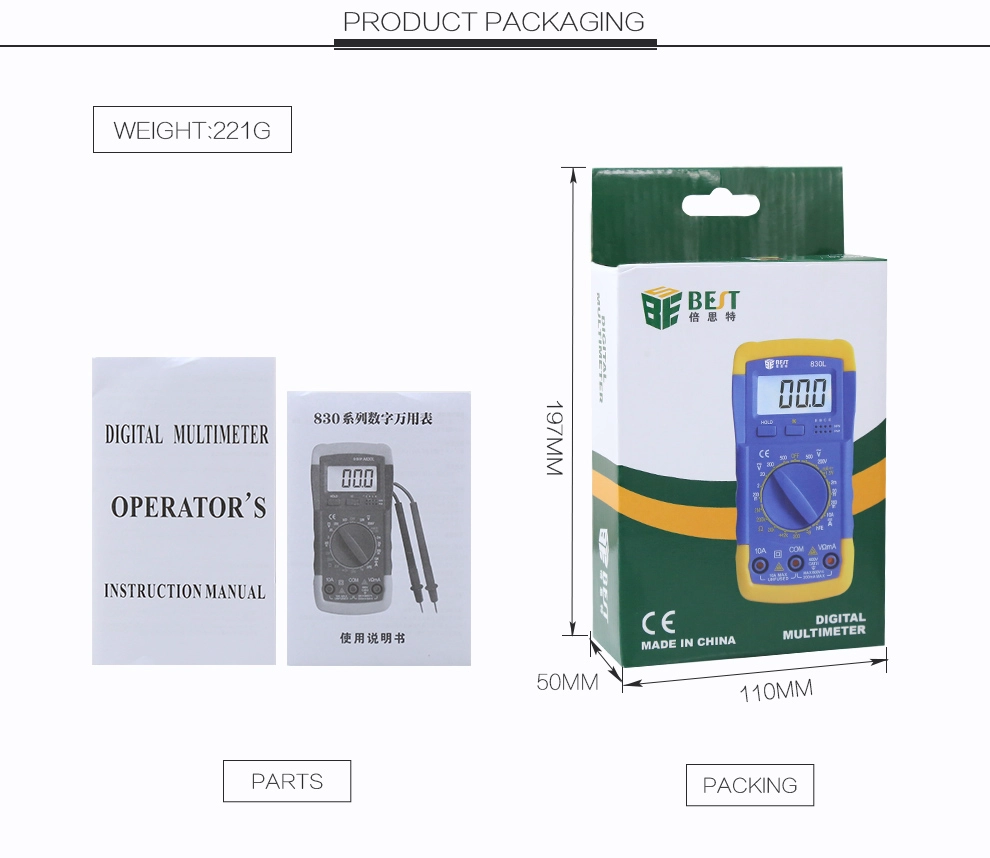

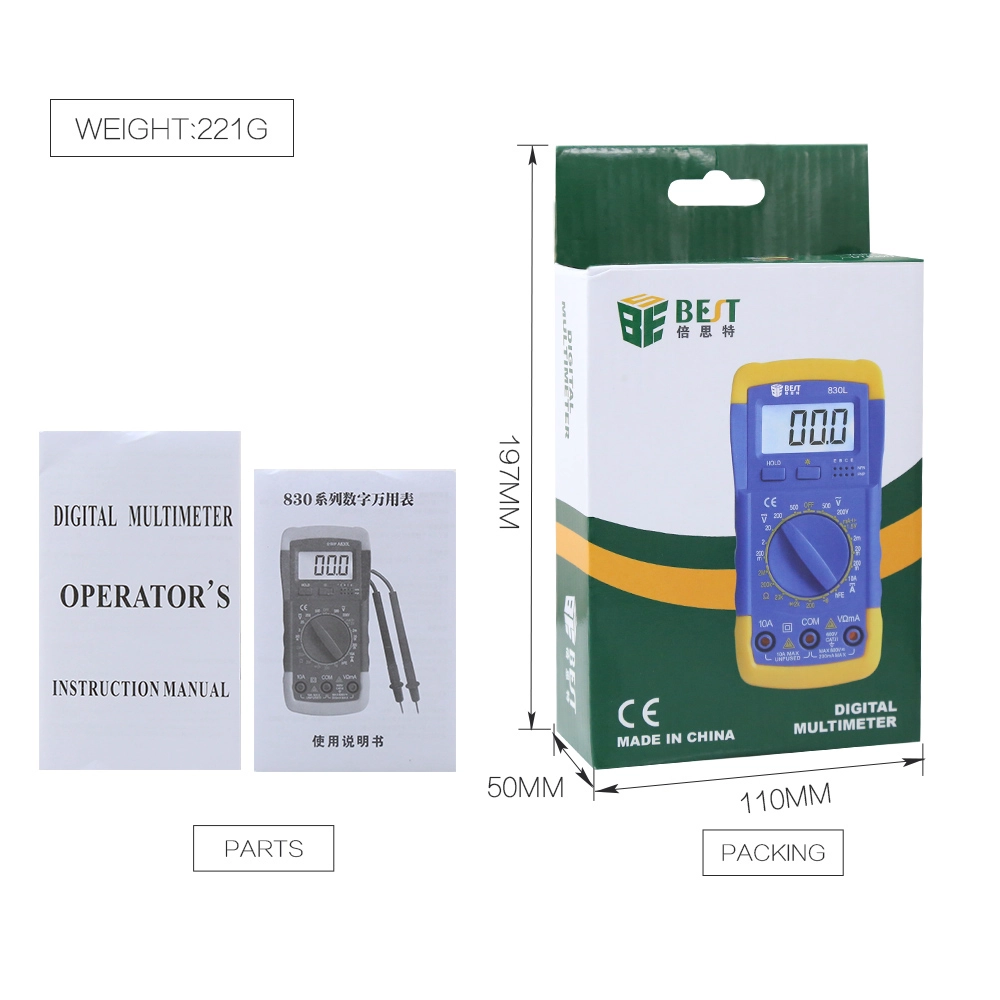

Package:

Color box

Package size

205*145*40mm

Packing:

40sets/carton

Carton size

57.5*43.5*34
